Auto Door Unlock (Only SMK)

  1. Under ANY DOOR LOCK, ALL DOOR UNLOCK signal is output at ACC ON→OFF.

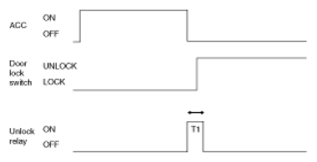

    Fig 1: Auto Door Unlock (Only SMK) Timing Chart
    G07256627Courtesy of HYUNDAI MOTOR CO.

    T1: 0.5s ± 0.1s
