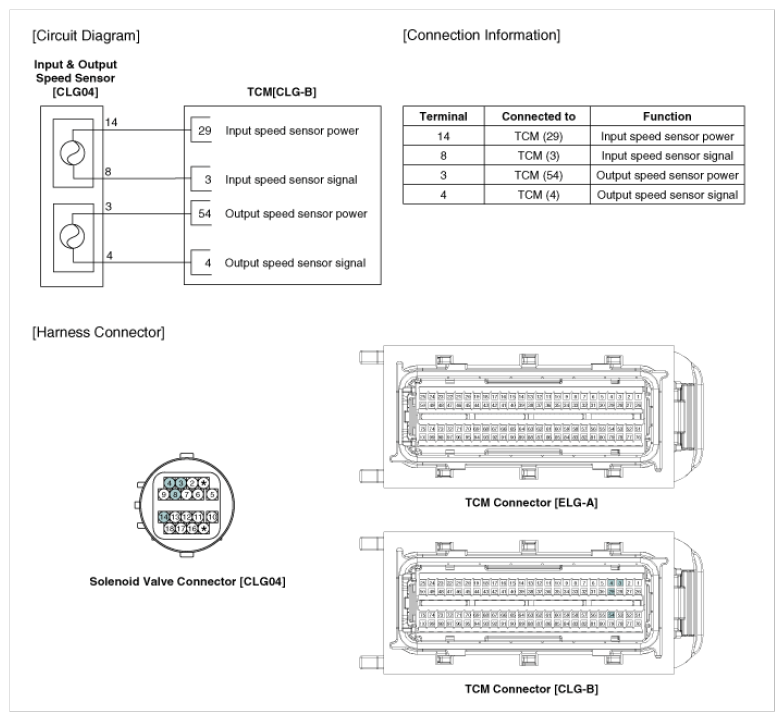

Home >> Hyundai >> 2012 >> Azera >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transaxle Control System >> Input Speed Sensor >> Schematic Diagrams >> Circuit Diagram
