Rear Engine Hanger

  1. Remove the rear engine hanger (A)

    Tightening torque:

    18.6 ~ 23.5N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4lb-ft)

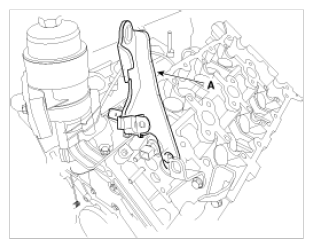

    Fig 1: Identifying Rear Engine Hanger
    G08809123Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
