Clock Spring

  1. If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage and terminals for deformities.

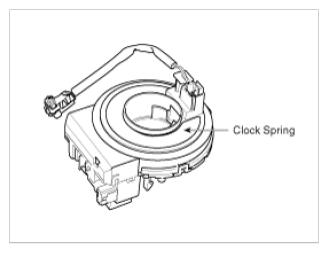

    Fig 1: Identifying Clock Spring
    G08810308Courtesy of HYUNDAI MOTOR AMERICA
