2012 Navigation Software Update Purchase Procedure (12-BE-017)

Publication date: 2012-10-01
Reference number: 12-BE-017

2012 NAVIGATION SOFTWARE UPDATE PURCHASE PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 12-BE-017, Date of Issue: October 01, 2012

HYUNDAI:	ALL MODELS
GROUP:	Body Electrical

DESCRIPTION:

This bulletin provides information for specific Navigation Software updates for the Point of Purchase (POP) program running from October 1, 2012 through December 31, 2012.

The Point of Purchase kit was created to support the sale of Hyundai Navigation System Map Updates. Each Hyundai Dealer was sent two kits. Additional kits can be purchased through MAPNSOFT.

POINT OF PURCHASE KIT CONTAINS:

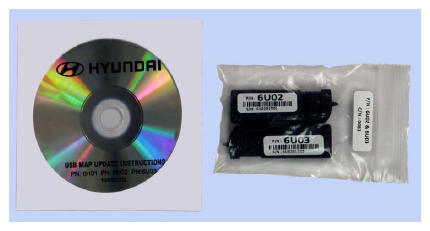

2 - USBs labeled 6U02 and 6U03

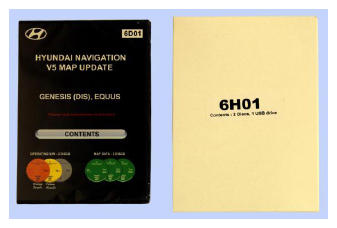

1 DVD (6H01) - Navigation System Map Updates for 2008MY, 2009MY and 2010MY Hyundai Sonata and any Genesis Sedan with Touch Screen Navigation System (non-DIS)
6 Disc DVD set (1 orange, 1 yellow, 1 grey, and 3 green discs) - Navigation Map and Operating System Update for Hyundai Genesis and Equus models equipped with the DIS Navigation System.

ADDITIONAL INFORMATION

A CD for USB update instructions is provided for P/Ns 6H01, 6U02, and 6U03.
All Compact Flash Map Update drives and USB Map Updates for other vehicles need to be ordered by the dealer online at Hyundaidealer.com.
All USB and DVD updates require an activation code.
- Dealers can place orders for activation codes for DVDs, Compact Flash drives and USB drives through the HyundaiDealer.com or by calling the Hyundai MAPNSOFT Customer Support at 1.888.757.0010.
- Hyundai MAPNSOFT Customer Support hours are:
  Monday through Friday 6:00 AM to 5:00 PM and Saturday 6:00 AM to 12:00 PM PST
- All NAVIGATION, BLUETOOTH AND AUDIO SETTINGS (PREVIOUS DESTINATIONS, HOME ADDRESSES, PHONE NUMBERS, RADIO PRESETS, ETC) WILL BE ERASED DURING THE MAP UPDATE.

USB Drives NOT in the POP Kit:

Part# 6U10: Veloster, MY: 2012
Part# 6U20: Elantra, MY: 2010 (Partitioned Flash Drive)
Part# 6U21: Elantra, MY: 2010 (Non-Partitioned Flash Drive)

DVD + USB Drives NOT in the POP Kit:

Part# 6H02 (1 DVD disc + 1 USB): Genesis with Touch Screen, MY: 2010, 2011, 2012

SOFTWARE UPDATE VERSIONS:

Use the chart below to confirm the previous and new software versions. Use caution in determining the correct software for each model and year of vehicle. Installing the incorrect software may lead to Head Unit lock-up and require Head Unit replacement. Other precautions include:

Turn the vehicle ON and let the engine idle before starting the software upload.
Use TSB 12-BE-016 for the proper installation instructions for Equus and Genesis DIS units.
Use the chart below to confirm the proper software before uploading into the vehicle's navigation unit:

SOFTWARE VERSIONS

MODEL	YEARS	NEW 2012 Map Version	2011 Map Version	2010 Map Version	2009 Map Version
Azera	2008-11	6C01 (5.03.29)	5C01 \| (4.04.27)	4C01 \| (3.07.20)	3C01 \| (2.08.14)
Elantra	2011-12	6U03 (5.04.13)	5U02 \| (4.04.15)	N/A	N/A
Elantra	2010	6U20/21 (5.03.29)	5U03 \| (4.04.15)	(2.11.13/2.11.14)	N/A
Equus	2011-12	6D01 (03.00.00 2012.04.14.01)	5D01 (03.00.00 2011.05.27.00)	N/A	N/A
Genesis (DIS)	2009-12	6D01 (03.00.00 2012.04.14.01)	5D01 (03.00.00 2011.05.27.00)	4D01 (03.00.00 2010.04.30.10)	(03.00.00 2009.00.25.14)
Genesis (AVN)	2010-12	6H02 (5.04.13)	5D02 \| (4.04.15)	4D02 \| (3.07.06)	N/A
Genesis Coupe	2010-12	6U02 (5.04.13)	5U01 \|(4.04.15)	4U01 \| (3.07.06)	N/A
Santa Fe	2010-12	6U02 (5.04.13)	5U01 \| (4.04.15)	4U01 \| (3.07.06)	N/A
Santa Fe	2008-9	6C01 (5.03.29)	5C01 \| (4.04.27)	4C01 \| (3.07.20)	3C01 \| (2.08.14)
Sonata	2011-12	6U03 (5.04.13)	5U02 \| (4.04.15)	N/A	N/A
Sonata	2010	6U02 (5.04.13)	5U01 (4.04.15)	4D02 \| (3.07.06)	2.08.14
Sonata	2008-9	6H01 (5.04.13)	5D02 \| (4.04.15)	4D02 \| (3.07.06)	3D02 \| (2.08.14)
Tucson	2011-12	6U02 (5.04.13)	5U01 \| (4.04.15)	N/A	N/A
Veracruz	2008-11	6C01 (5.03.29)	5C01 \| (4.04.27)	4C01 \| (3.07.20)	3C01 \| (2.08.14)
Veloster	2012	6U10 (5.44.59.001)	Version Varies from car to car. Will always start with "4"	N/A	N/A

Vehicles Affected:

All Models
