Components and Components Location: Components

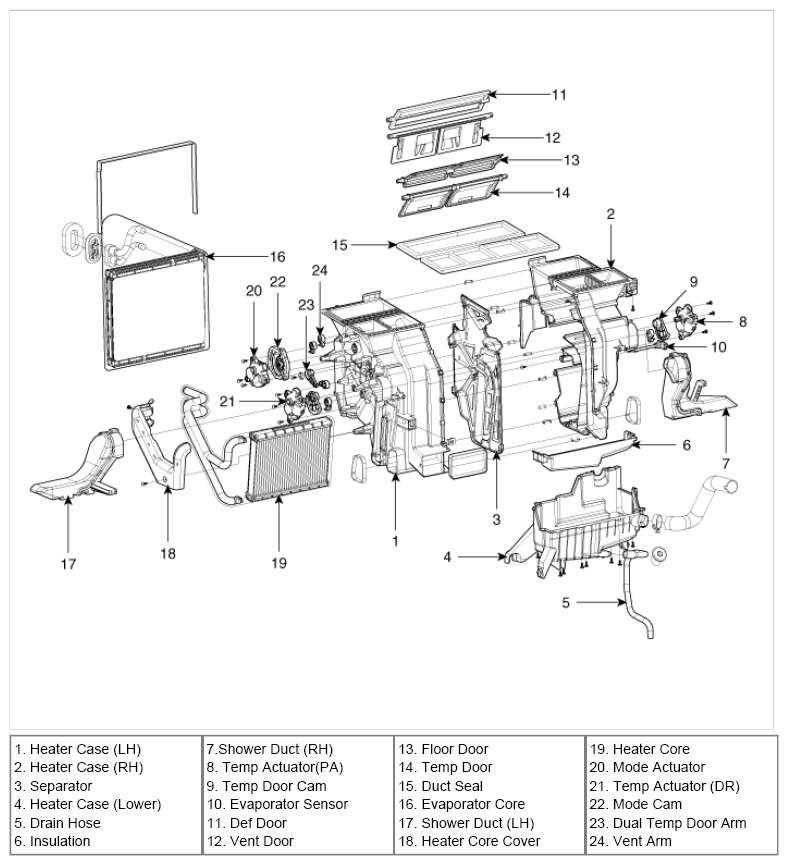

Fig 1: Exploded View Of Heater Unit Components

G08814780

Courtesy of HYUNDAI MOTOR AMERICA
