Removal and Installation: [RH]

Disconnect the battery negative terminal.
Remove the surge tank.
(Refer to "SURGE TANK ")
Disconnect the RH ignition coil connectors (A) and then remove the RH ignition coils.
Tightening torque:

3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3lb-ft)

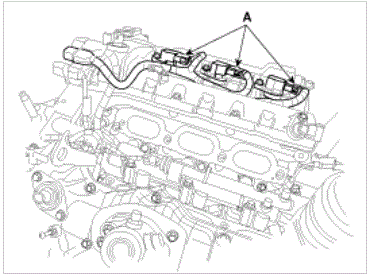

Fig 1: Identifying RH Ignition Coil Connectors
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When disconnecting the ignition coil connector, pull out the locking pin (A) and then pull out the connector while pressing the clip (B).

Fig 2: Locating Locking Pin And Clip
Courtesy of HYUNDAI MOTOR AMERICA
Installation is reverse order of removal.
