Removal and Installation

  1. Remove the automatic transaxle.

    (Refer to "AUTOMATIC TRANSAXLE ")

  2. Remove the adapter plate (B) and the drive plate (A).

    Tightening torque:

    71.6 ~ 75.5N.m (7.3 ~ 7.7kgf.m, 52.8 ~ 55.7lb-ft)

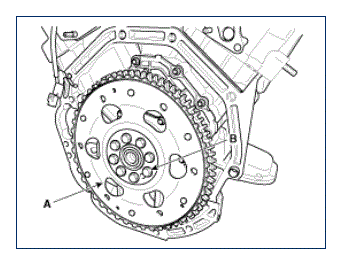

    Fig 1: Identifying Drive Plate And Adapter Plate
    G08809283Courtesy of HYUNDAI MOTOR AMERICA
  3. Install in the reverse order of removal.
