Removal and Installation

Remove the radiator upper hose and lower hose.
(Refer to "RADIATOR HOSE ")
Remove the cooling fan assembly.
(Refer to "COOLING FAN ")
Disconnect the ATF cooler hoses.
(Refer to "AUTOMATIC TRANSAXLE ")
Disconnect the over flow hose.
(Refer to "RESERVOIR TANK ")

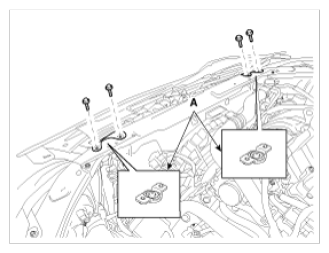

Remove the radiator mounting brackets (A).
Tightening torque: 3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)

Fig 1: Identifying Radiator Mounting Brackets
Courtesy of HYUNDAI MOTOR AMERICA

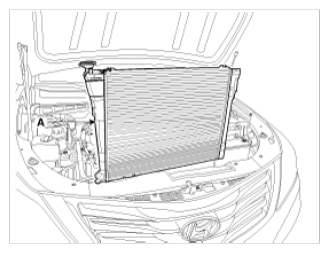

Separate the condenser from the radiator and then pull radiator (A) up and remove it from engine room.

Fig 2: Identifying Engine Radiator
Courtesy of HYUNDAI MOTOR AMERICA
Installation is in the reverse order of removal.
Fill the radiator with coolant and check for leaks.
NOTE:
- Bleed air from the cooling system.
  - Start engine and let it run until it warms up. (Until the radiator fan operates 3 or 4 times.)
  - Turn off engine and let it cool down. Check the coolant level and add coolant if needed. This will allow trapped air to be removed from the cooling system.
  - Put the radiator cap on tightly, then run engine again and check for leaks.
