Repair procedures: Removal

  1. Remove the radiator grill upper guide.

    (Refer to "FRONT BUMPER COVER ")

  2. Remove the mounting nut and disconnect the horn connector, then remove the high pitch horn (A) and low pitch horn (B).

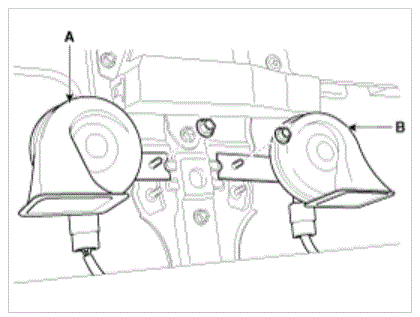

    Fig 1: Identifying High And Low Pitch Horn
    G08810926Courtesy of HYUNDAI MOTOR AMERICA
