ABS Control Module Connector End View (E02)

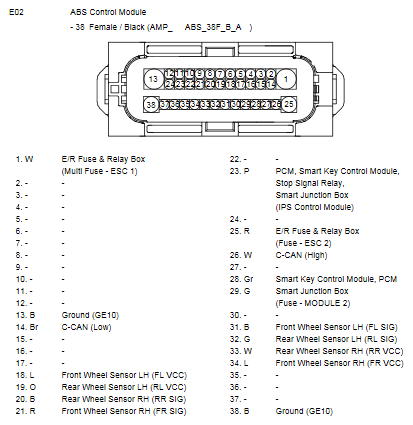

Fig 1: ABS Control Module Connector End View (E02)

G10774948

Courtesy of HYUNDAI MOTOR AMERICA
