Repair Procedures: Replacement: Installation

Install is the roll blind (A).
CAUTION:
- When you install it, be care of that an edge (B) is dashed against the frame of vehicle because the roll blind tension looses.

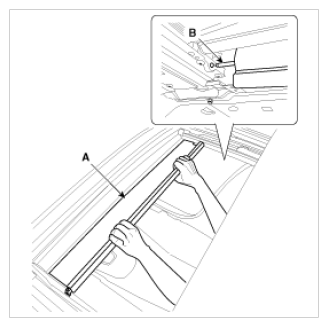

Fig 1: Installing Roll Blind
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When the tension of roll blind is removed, Push an edge (B), Turn it counterclockwise 19~21, Install it by removing the push.
Install the screws to the roll blind lower bracket (A).

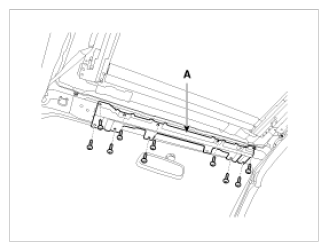

Fig 2: Identifying Roll Blind Lower Bracket With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Install the roof trim.
