Inspect Glass Alignment

Check for abnormal noise or bending during operation.
With the sunroof fully closed, check for water leakage.
The roof panel (B) should be even with the movable glass (A) weatherstrip, to within the standard value "E" all the way around. If not, make the following adjustment.
Tightening torque:

Standard value "E" [mm (in.)]
1. Front edge: 1.2 mm (0.0472 in.)
2. Rear edge: 1.0 mm (0.0394 in.)

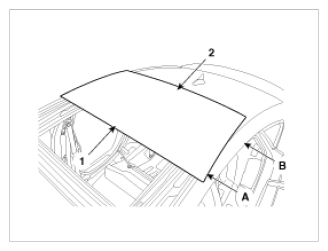

  Fig 1: Identifying Roof Panel, Movable Glass And Weatherstrip
  Courtesy of HYUNDAI MOTOR AMERICA
If the position is not as specified, lightly loosen the glass adjusting screws (A) to adjust the glass height and tighten it.
CAUTION:
- Do not damage the screws.

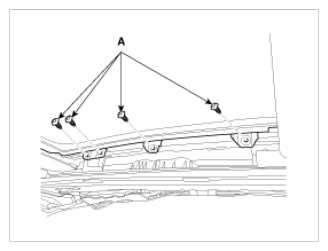

Fig 2: Identifying Glass Adjusting Screws
Courtesy of HYUNDAI MOTOR AMERICA
