Home >> Hyundai >> 2012 >> Azera >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Door Mirrors >> Power Out Side Mirror Switch >> Components and Components Location >> Component

Components and Components Location: Component

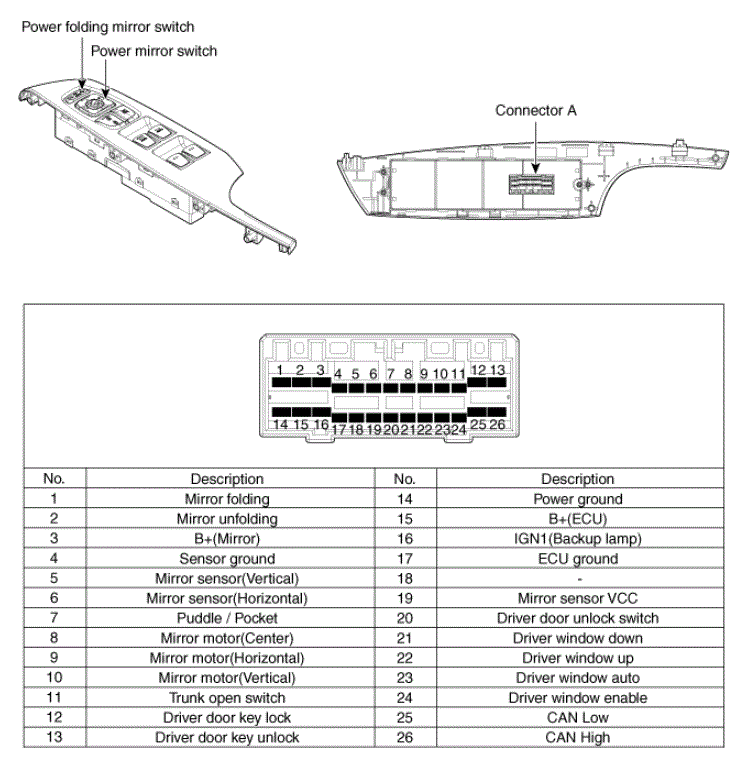

Fig 1: Power Mirror Switch Connectors

G08814407

Courtesy of HYUNDAI MOTOR AMERICA
