Body Repair
Body Repair

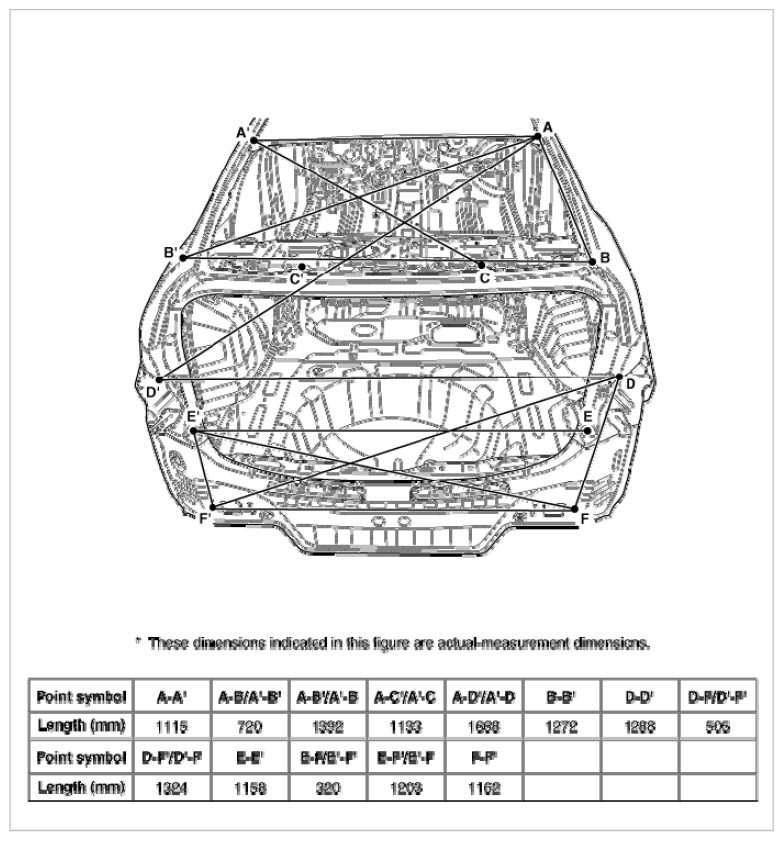

Fig 1: Identifying Rear Body Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

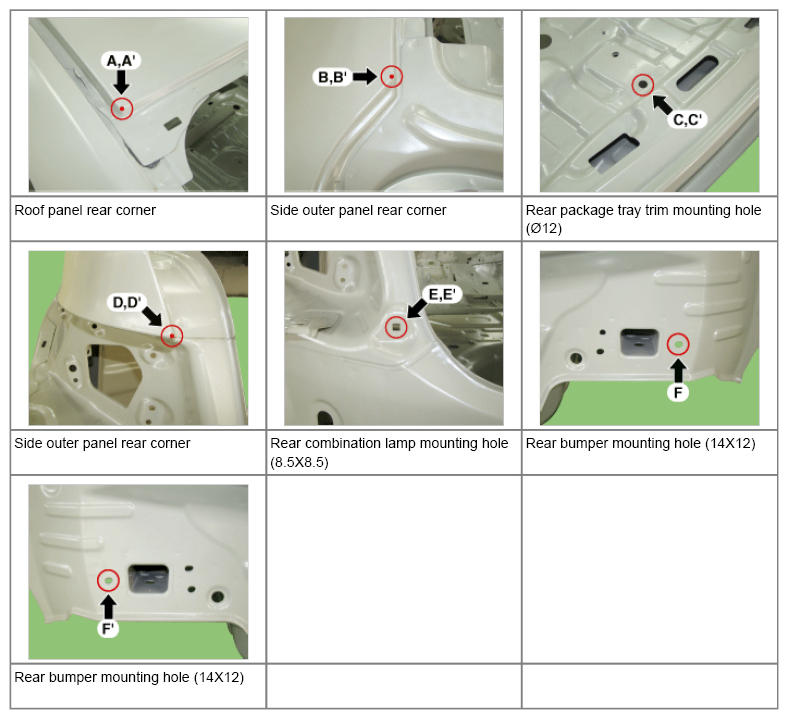

Fig 2: Locating Mounting Holes On Rear Body
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
