Interior D

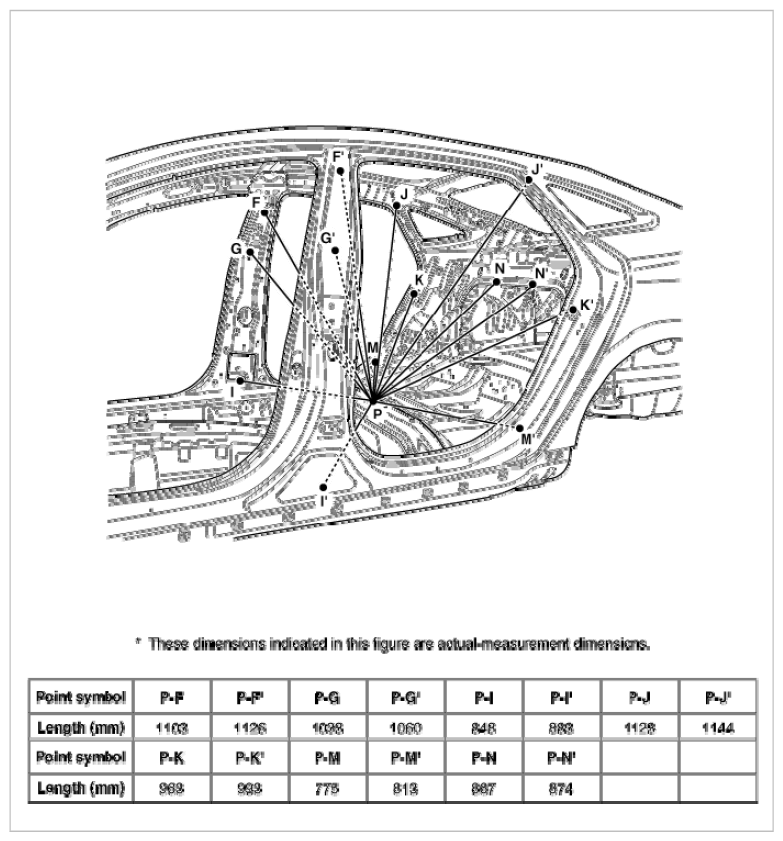

Fig 1: Identifying Interior D Dimensions

G08810509

Courtesy of HYUNDAI MOTOR AMERICA

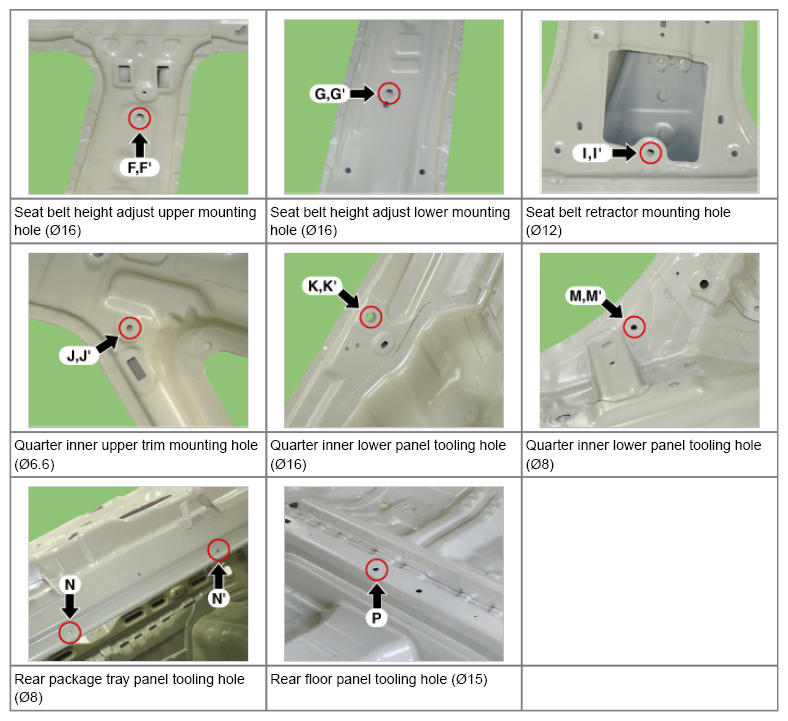

Fig 2: Locating Mounting Holes On Interior D

G08810510

Courtesy of HYUNDAI MOTOR AMERICA
