Front Body B
Front Body B

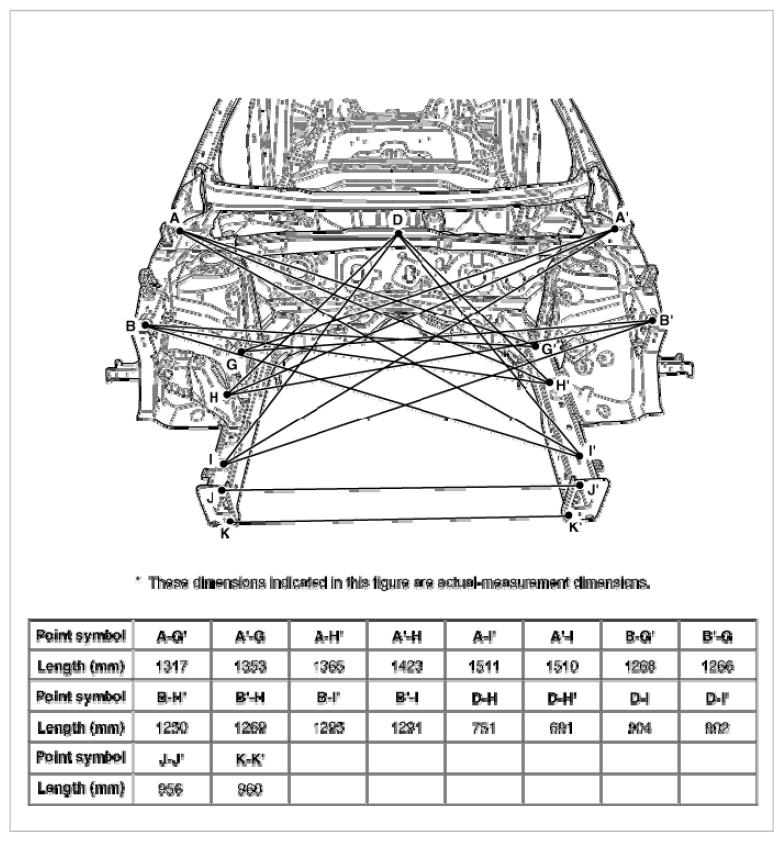

Fig 1: Identifying Front Body B Dimensions
Courtesy of HYUNDAI MOTOR AMERICA

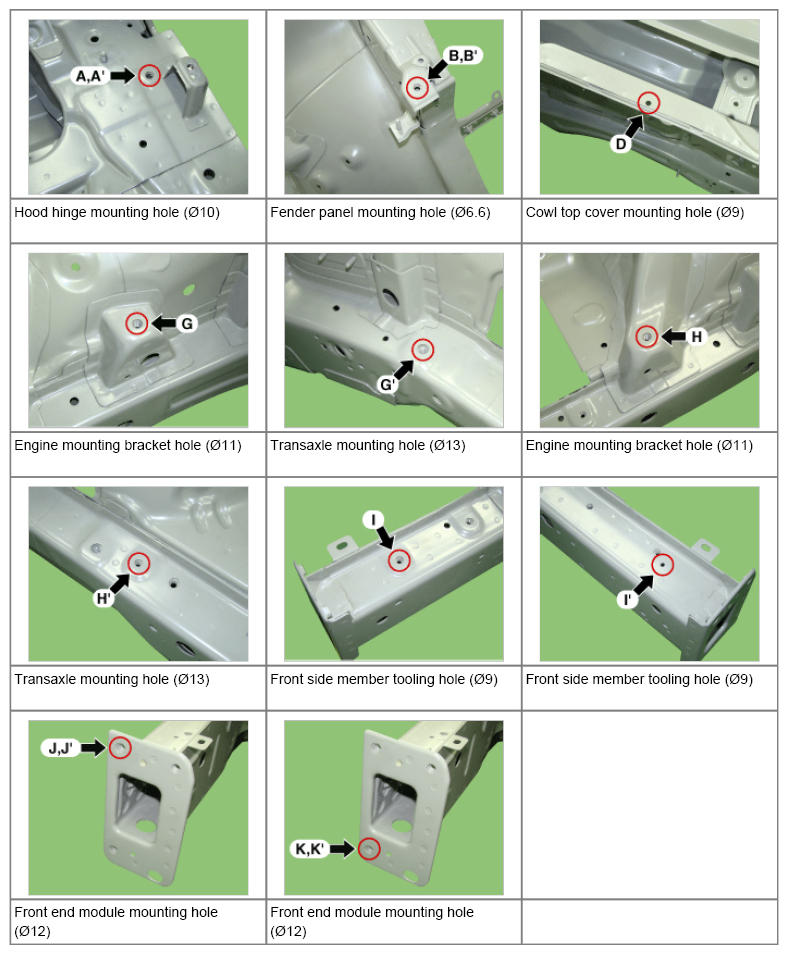

Fig 2: Locating Mounting Holes On Front Body B
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
