Front Body A

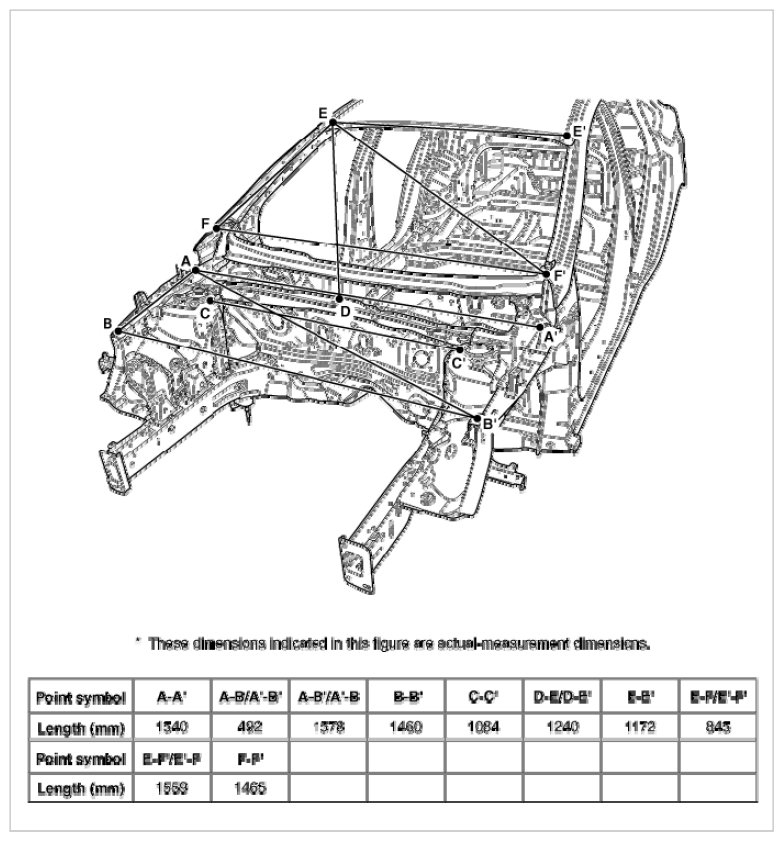

Fig 1: Identifying Front Body A Dimensions

G08810493

Courtesy of HYUNDAI MOTOR AMERICA

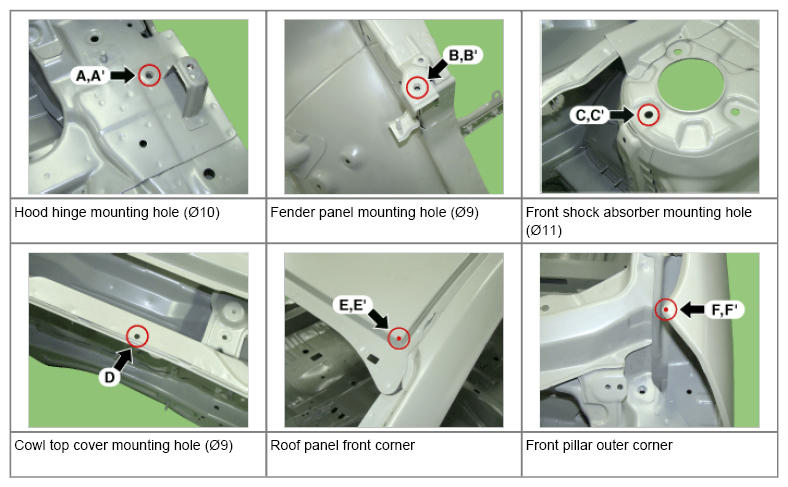

Fig 2: Locating Mounting Holes On Front Body A

G08810494

Courtesy of HYUNDAI MOTOR AMERICA
