Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Remove the front tire.
  2. After loosening the mounting clips and screws, then remove the front wheel guard (A).

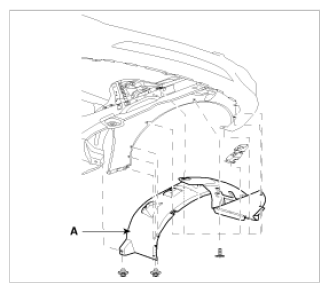

    Fig 1: Identifying Front Wheel Guard With Mounting Clips And Screws
    G08810612Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
