Repair Procedures: Replacement

  1. Remove the trunk lid weatherstrip (A).
    CAUTION:
    • Do not apply sealant to the body.

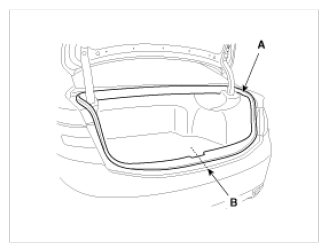

    Fig 1: Identifying Trunk Lid Weatherstrip
    G08810554Courtesy of HYUNDAI MOTOR AMERICA
  2. Installation is the reverse of removal.
    NOTE:
    • Install the weatherstrip aligned with canter line (B).
