Repair Procedures: Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts to prevent damage.
Put on gloves to protect your hands.

After loosening the mounting screws, then remove the trunk inside handle (A).

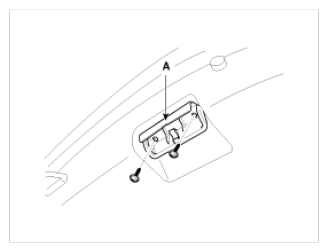

Fig 1: Identifying Trunk Inside Handle With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Detach the clips, then remove the trunk lid trim (A).

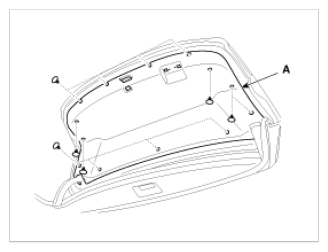

Fig 2: Identifying Trunk Lid Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
