Repair Procedures: Replacement

CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the trunk lid trim.

    (Refer to Trunk Lid - "TRUNK LID TRIM ")

  2. Disconnect the key holder cable (A), then loosen the key holder (B) mounting bolts and remove.

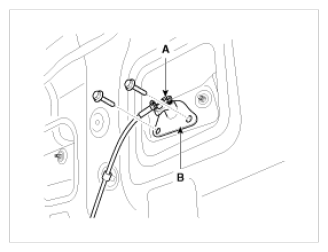

    Fig 1: Identifying Key Holder And Cable
    G08810553Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse of removal.
