Repair Procedures: Replacement

CAUTION:
  • When removing and installing the trunk lid an assistant is necessary.
  • Wear gloves to protect hands from injury.
  1. After loosening the mounting screws, then remove the trunk inside handle (A).

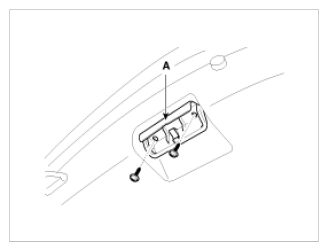

    Fig 1: Identifying Trunk Inside Handle
    G08810543Courtesy of HYUNDAI MOTOR AMERICA
  2. Detach the clips, then remove the trunk lid trim (A).

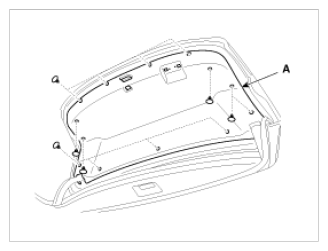

    Fig 2: Identifying Trunk Lid Trim And Fixing Clips
    G08810544Courtesy of HYUNDAI MOTOR AMERICA
  3. Detach the clips, then remove the trunk lid side cover (A).

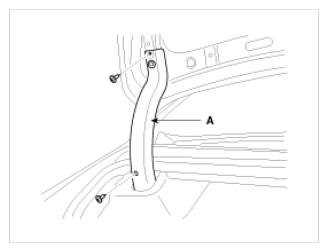

    Fig 3: Identifying Trunk Lid Side Cover
    G08810545Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect wiring (B) and connectors.
  5. After loosening the mounting bolts, then remove the trunk lid (A).

    Tightening torque:

    6.9~8.8 N.m (0.7~0.9 kgf.m, 5.1~6.5 lb-ft)

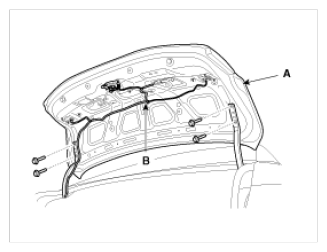

    Fig 4: Identifying Trunk Lid With Wiring And Mounting Bolts
    G08810546Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
