Repair Procedures: Inspection

  1. Disconnect the negative(-) battery terminal.
  2. Remove the roof trim.

    (Refer to "ROOF TRIM ASSEMBLY ")

  3. Remove the handsfree mic (A) after disconnect the connector from roof top.

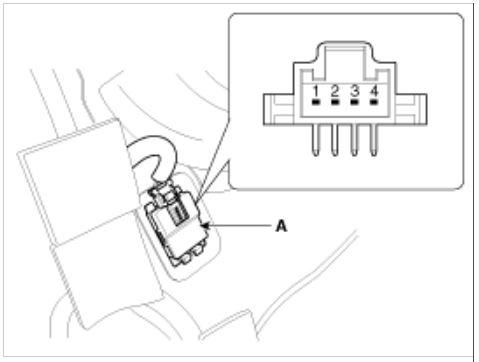

    Fig 1: Identifying Handsfree Mic
    G08814129Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage the roof trim when removing the hands free mic.
  4. Check the continuity of the Mic between terminals.

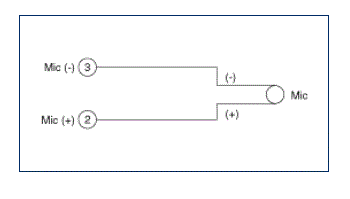

    Fig 2: Checking Continuity Between Mic Terminals
    G08814130Courtesy of HYUNDAI MOTOR AMERICA
