Repair Procedures: Installation

  1. Install the multimedia jack.

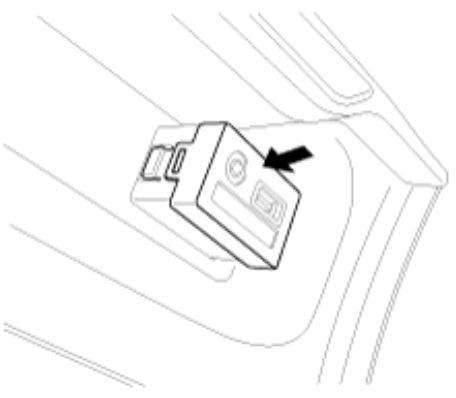

    Fig 1: Installing Multimedia Jack
    G08810945Courtesy of HYUNDAI MOTOR AMERICA
  2. Install the floor console upper cover.
  3. Install the shift lever knob.
    NOTE: Make sure the multimedia connector and the console upper cover connectors are plugged in properly.
