AVN Monitor

  1. Remove the center fascia panel.

    (Refer to "AVN HEAD UNIT ")

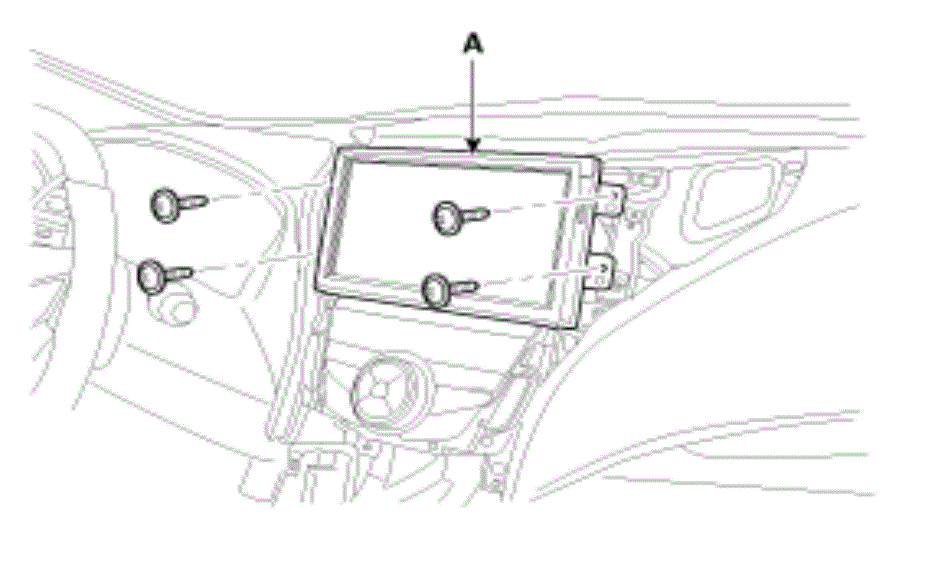

  2. Remove the monitor (A) after loosening the mounting screws.
    Fig 1: Identifying AVN Monitor And Mounting Screws
    G08810939Courtesy of HYUNDAI MOTOR AMERICA

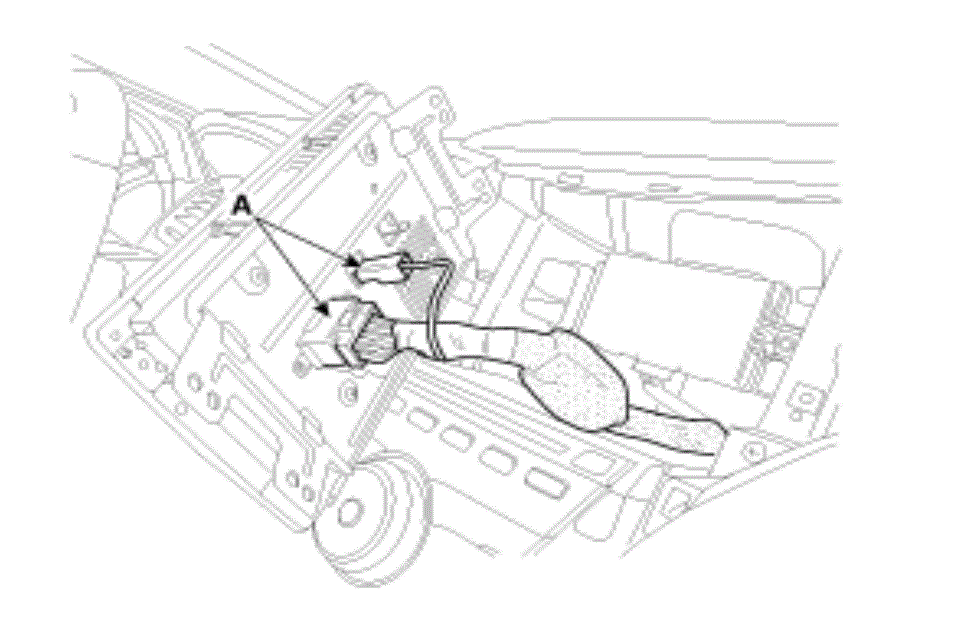

  3. Remove the AVN monitor connectors and cables (A).
    Fig 2: Identifying AVN Monitor Connectors And Cables
    G08810940Courtesy of HYUNDAI MOTOR AMERICA
