CLU Variant Coding Method and Procedure (Off-line type on GDS)

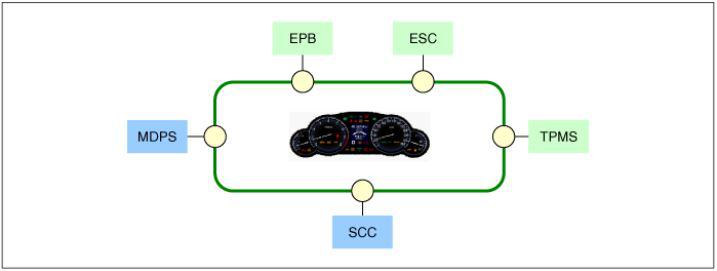

Fig 1: CLU Variant Coding Method And Procedure (Off-Line Type On GDS)
Courtesy of HYUNDAI MOTOR AMERICA

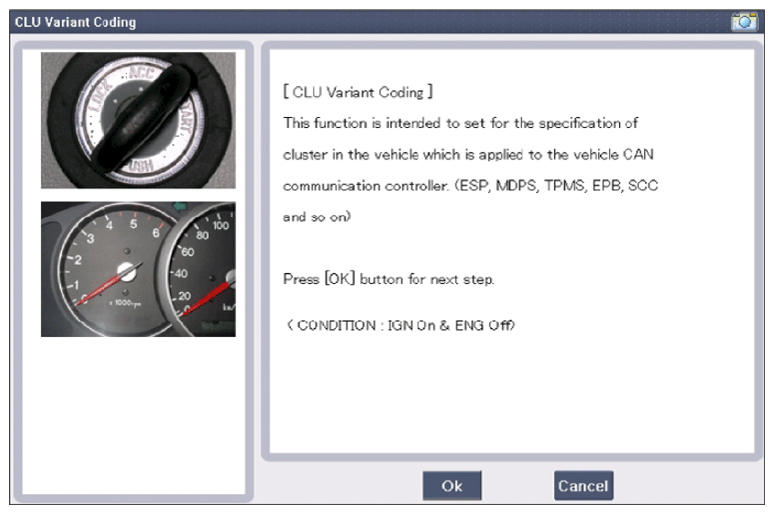

Fig 2: Display - CLU Variant Coding's Proceeding Screen (1 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

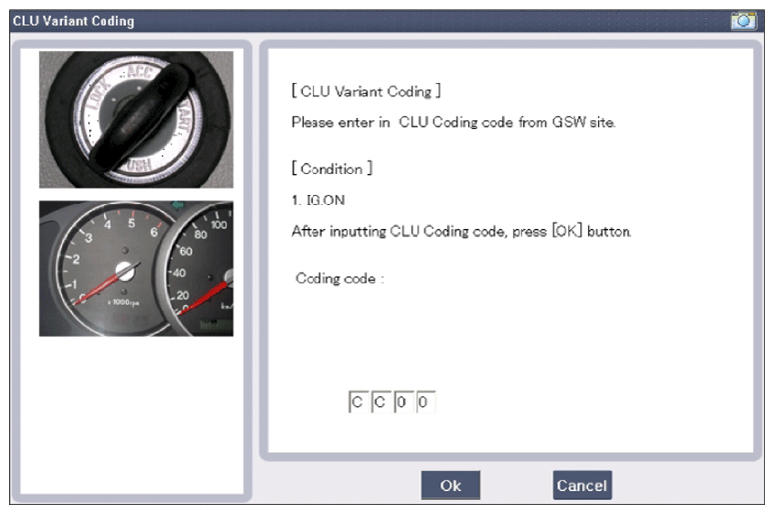

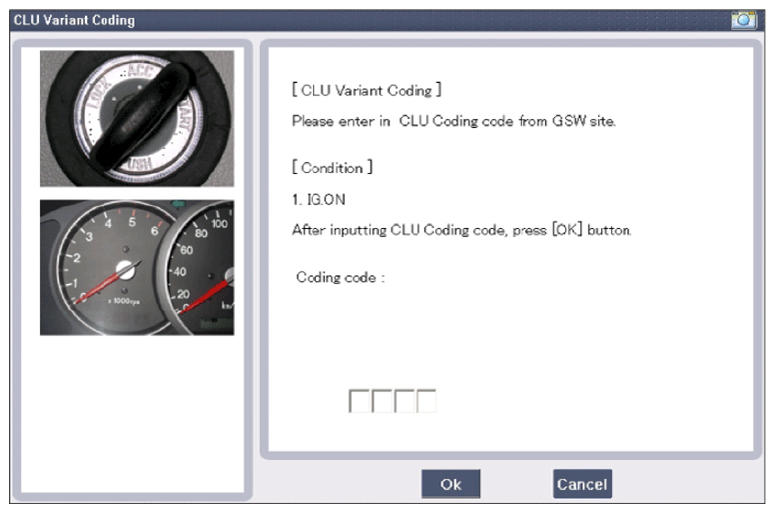

Fig 3: Display - CLU Variant Coding's Proceeding Screen (2 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Display - CLU Variant Coding's Proceeding Screen (3 Of 3)
Courtesy of HYUNDAI MOTOR AMERICA

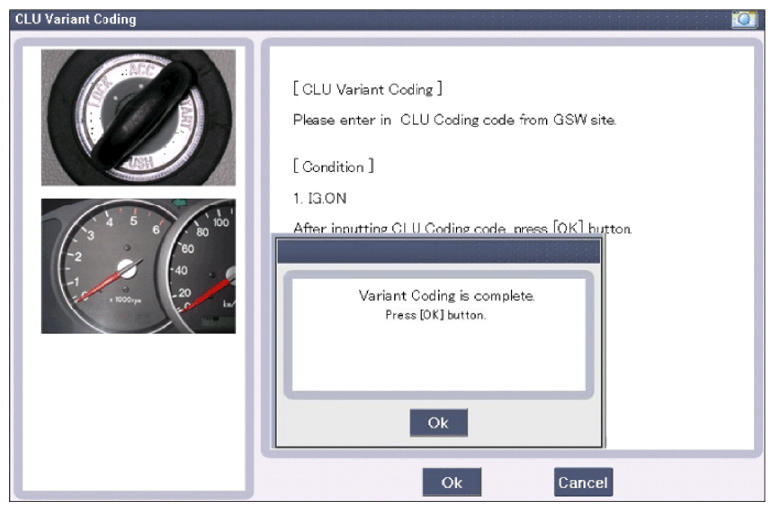

Fig 5: Display - CLU Variant Coding Completed
Courtesy of HYUNDAI MOTOR AMERICA
CLU Variant Coding Method and Procedure (On-line type on GDS)

Fig 6: Display - CLU Variant Coding's Proceeding Screen (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

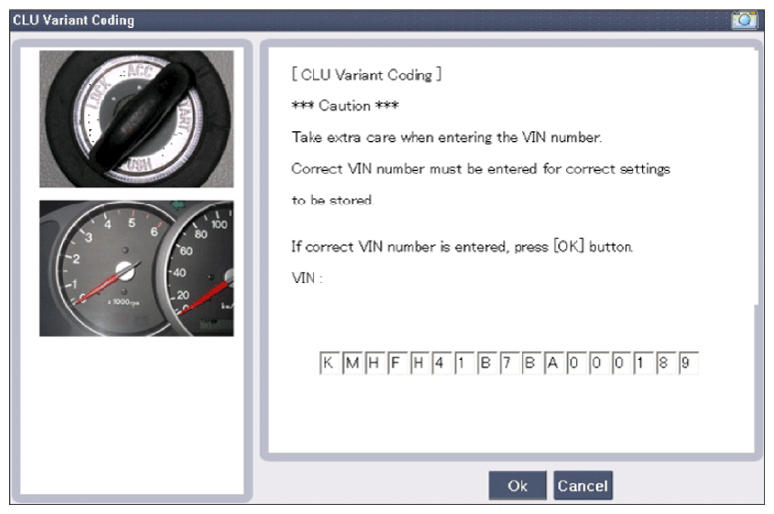

Fig 7: Display - CLU Variant Coding's Proceeding Screen (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

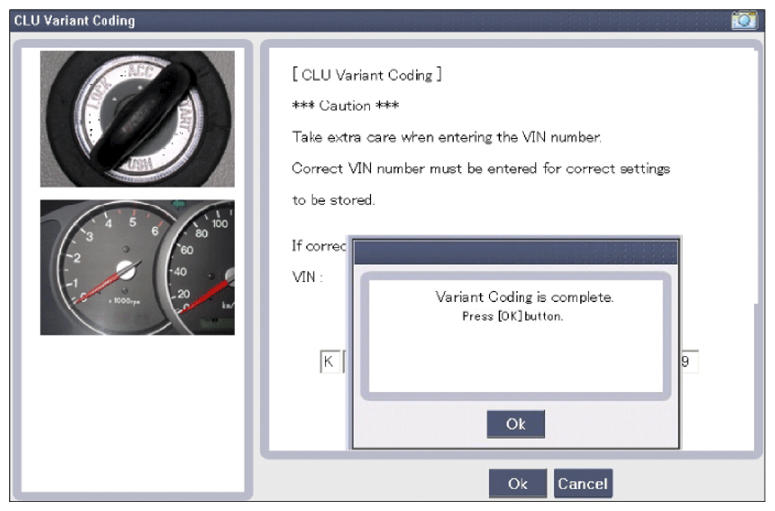

Fig 8: Display - CLU Variant Coding Completed
Courtesy of HYUNDAI MOTOR AMERICA
