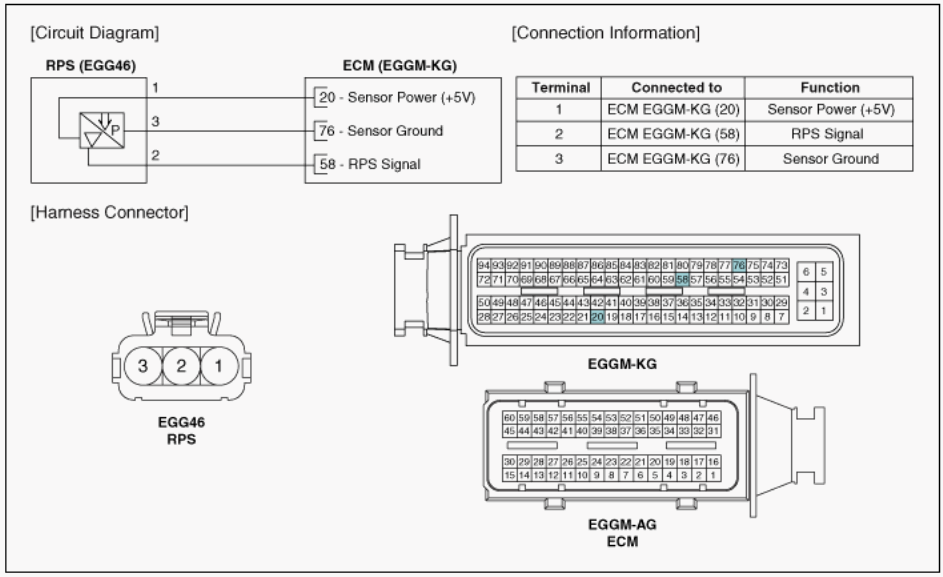

Home >> Hyundai >> 2012 >> Accent SE, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Rail Pressure Sensor (RPS) >> Schematic Diagrams >> Circuit Diagram >> (M/T)
