Circuit Diagram: (A/T)

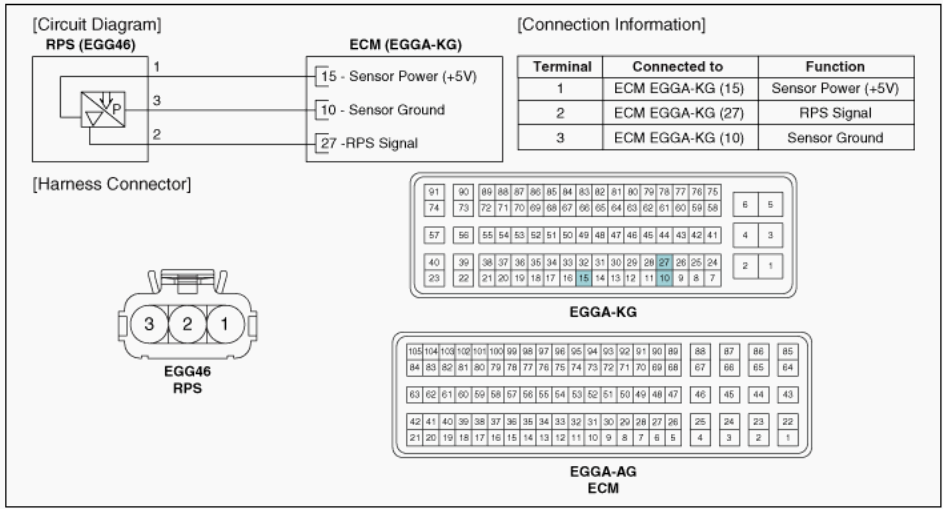

Fig 1: Rail Pressure Sensor - Circuit Diagram (A/T)

G08804461

Courtesy of HYUNDAI MOTOR AMERICA
