Components And Components Location: Components

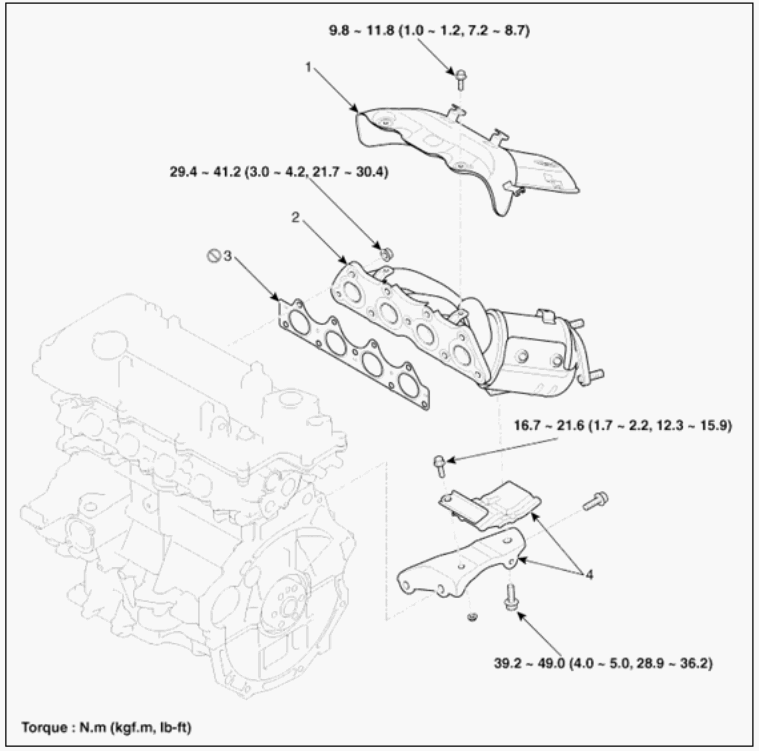

Fig 1: Exhaust Manifold And Catalytic Converter Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Heat protector	3. Exhaust manifold gasket
2. Exhaust manifold	4. Exhaust manifold stay
