Repair procedures: Removal

Remove the battery and the battery tray. (Refer to "CHARGING SYSTEM " )

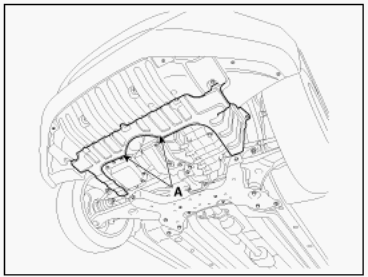

Remove the under cover (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 1: Identifying Hydraulic System Valve Body Under Cover
Courtesy of HYUNDAI MOTOR AMERICA
Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. (Refer to "Hydraulic system (Fluid )" )

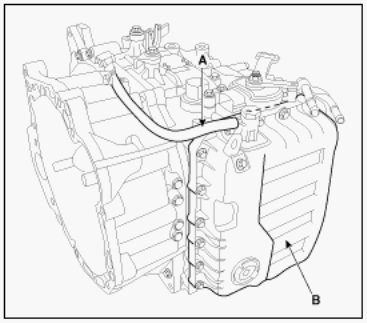

Remove the valve body cover (B).
Tightening torque:

13.7 ~ 15.7 N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6 lb-ft)

Fig 2: Identifying Air Breather Hose And Valve Body Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the air breather hose (A).

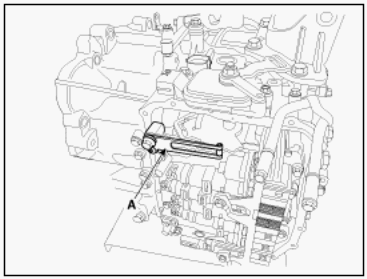

Remove the plate and the detent spring (A) after removing the bolt.
Tightening torque:

11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)

Fig 3: Identifying Detent Spring Plate
Courtesy of HYUNDAI MOTOR AMERICA

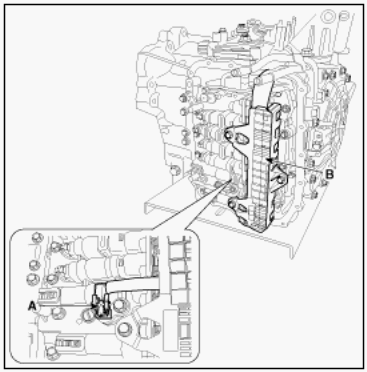

Remove the bolt (3ea) after disconnecting the solenoid valve (B) connector and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 4: Identifying Solenoid Valve & Oil Temperature Sensor Connectors
Courtesy of HYUNDAI MOTOR AMERICA

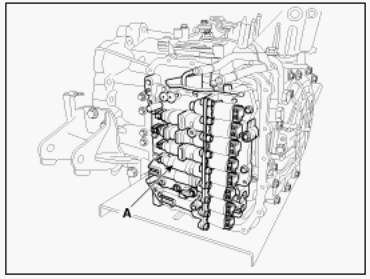

Remove the valve body assembly (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 5: Identifying Valve Body Assembly
Courtesy of HYUNDAI MOTOR AMERICA
