Monitor GDS Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.

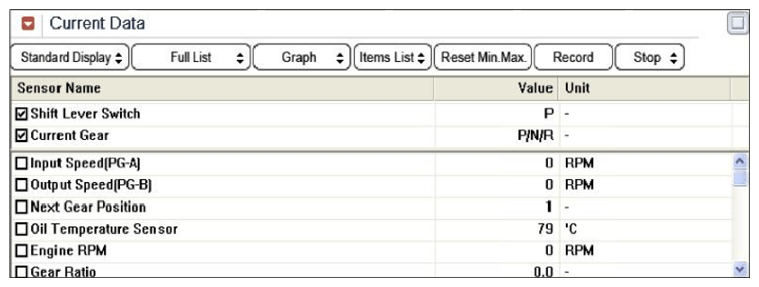

    Fig 1: P Range
    G08802969Courtesy of HYUNDAI MOTOR AMERICA

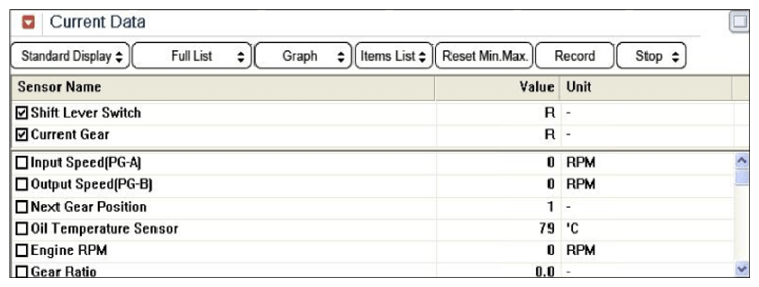

    Fig 2: R Range
    G08802970Courtesy of HYUNDAI MOTOR AMERICA

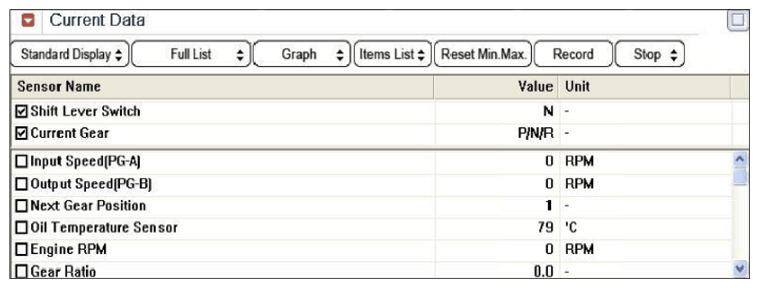

    Fig 3: N Range
    G08802971Courtesy of HYUNDAI MOTOR AMERICA

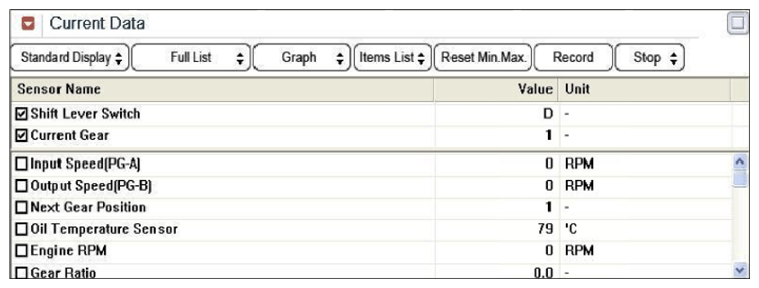

    Fig 4: D Range
    G08802972Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM/TCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
