Repair procedures: Inspection: Rotor

  1. Check that there is continuity between the slip rings (C).

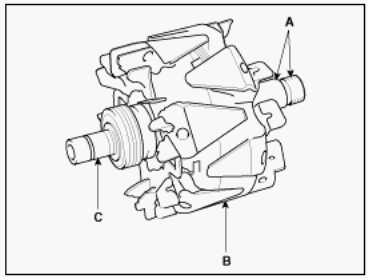

    Fig 1: Identifying Rotor, Shaft And Slip Rings
    G08804265Courtesy of HYUNDAI MOTOR AMERICA
  2. Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (A).
  3. If the rotor fails either continuity check, replace the alternator.
