Repair procedures: Reassembly

  1. Wrap tape around the driveshaft spline (TJ) to prevent damage to the boots.
  2. Apply grease to the joint boot on the side of the wheel and install the boot.
  3. Install the clamp.

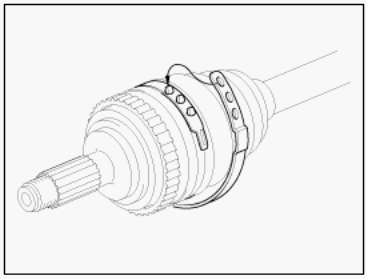

    Fig 1: Identifying Drive Shaft Boot Clamp
    G08805296Courtesy of HYUNDAI MOTOR AMERICA
  4. Assemble the transaxle side joint boot and bands.
  5. Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and snap ring (B) on the driveshaft splines (C).

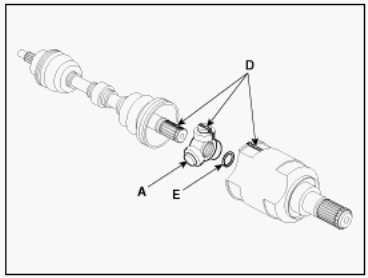

    Fig 2: Identifying Spider Assembly, Snap Ring And Driveshaft Splines
    G08805297Courtesy of HYUNDAI MOTOR AMERICA

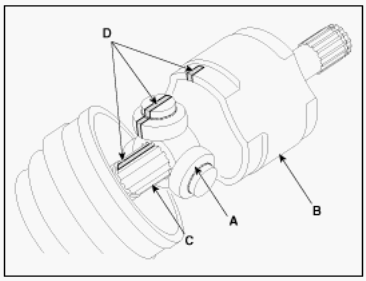

    Fig 3: Identifying Spider Assembly, Snap Ring And Alignment Marks
    G08805298Courtesy of HYUNDAI MOTOR AMERICA
  6. Add specified grease to the joint boot as much as it was wiped away at inspection.
  7. Install the both boot band.
  8. To control the air in the TJ boot, keep the specified distance between the boot bands when they are tightened.
    Engine TM Distance (L) mm (in.)
    LH RH
    Gasoline 1.6 GDI AT 488.9 (19.24) 780.7 (30.74)
    MT 512.1 (20.16) 792.5 (31.20)
  9. Using the SST (09495-3K000), secure the TJ boot band.

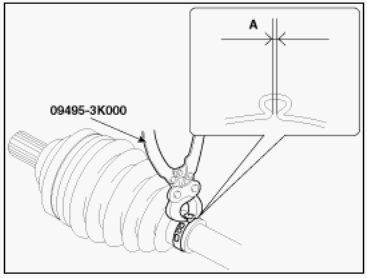

    Fig 4: Securing Boot Band Using Tool
    G08805299Courtesy of HYUNDAI MOTOR AMERICA
