Trunk Lid Assembly Replacement

NOTE:
  • When removing and installing the trunk lid, an assistant is necessary.
  • Put on gloves to protect your hands.
  1. Detach the clips, then remove the trunk lid trim (A).

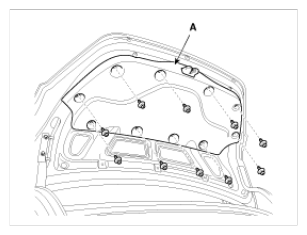

    Fig 1: Identifying Trunk Lid Trim
    G08805840Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect wiring (B) and connectors.
  3. After loosening the mounting bolts, then remove the trunk lid (A).

    Tightening torque:

    6.9 ~ 8.8 N.m (0.7 ~ 0.9 kgf.m, 5.1 ~ 6.5 lb-ft)

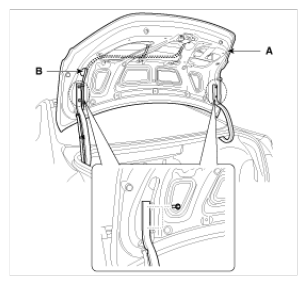

    Fig 2: Identifying Trunk Lid And Mounting Bolts
    G08805841Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
