Key Holder Replacement

  1. Remove the tail gate trim.
  2. Disconnect the key holder rod (A), then loosen the key holder (B) mounting bolts and remove.

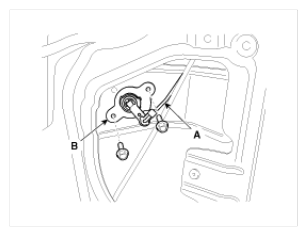

    Fig 1: Identifying Key Holder Rod And Key Holder
    G08805849Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse of removal
