Guide Assembly Replacement

  1. Remove the sunroof assembly.
  2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

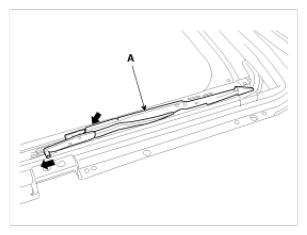

    Fig 1: Removing Guide Assembly
    G08805925Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the guide (A) and slide (B).

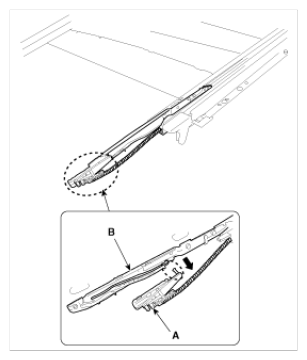

    Fig 2: Identifying Guide And Slide
    G08805926Courtesy of HYUNDAI MOTOR AMERICA
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure to align the slide with the center of "A" and "B"
    • Make sure to initialize the motor. Refer to How To Initialize Motor .
