Deflector Replacement

  1. Open the glass fully.
  2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).

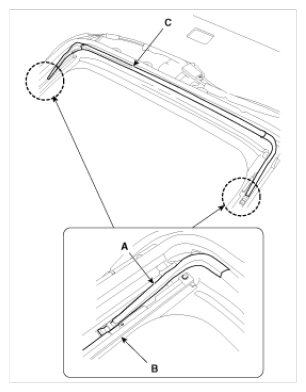

    Fig 1: Identifying Deflector, Link And Frame
    G08805921Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse of removal.
