Outside Rear View Mirror Assembly Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

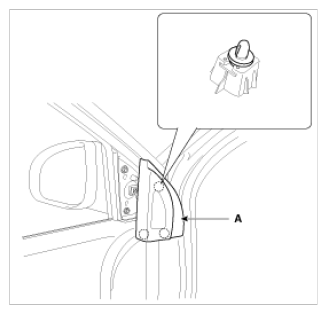

Fig 1: Identifying Front Door Quadrant Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the tweeter speaker connector (A).

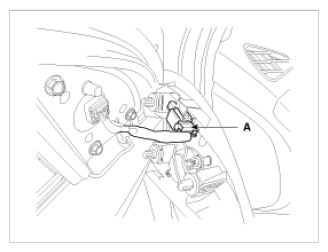

Fig 2: Identifying Tweeter Speaker Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connector (A).
After loosening the mounting bolts, then remove the outside rear view mirror (B).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

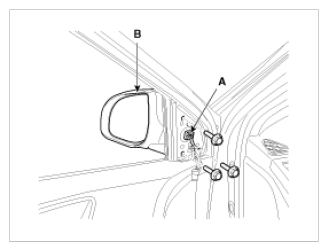

Fig 3: Identifying Outside Rear View Mirror And Connector
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
