Repair procedures: Replacement

NOTE:
  • When removing and installing the fender, an assistant is necessary.
  • Be careful not to damage the fender and body.
  • When removing the clips, use a clip remover.
  1. Remove the front bumper cover.

    (Refer to the "FRONT BUMPER ")

  2. Loosen the mud guard mounting screws.

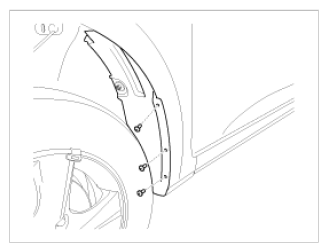

    Fig 1: Identifying Mud Guard Mounting Screws
    G08805830Courtesy of HYUNDAI MOTOR AMERICA
  3. After loosening the mounting screws, then remove the front bumper side mounting bracket (A).

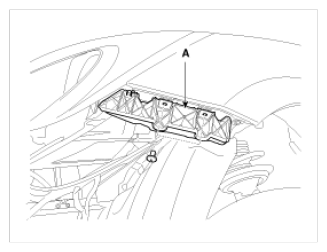

    Fig 2: Identifying Front Bumper Side Mounting Bracket
    G08805831Courtesy of HYUNDAI MOTOR AMERICA
  4. Using a screwdriver or remover, remove the fender side cover (B).
  5. After loosening the mounting bolts and nut, then remove the fender (A).

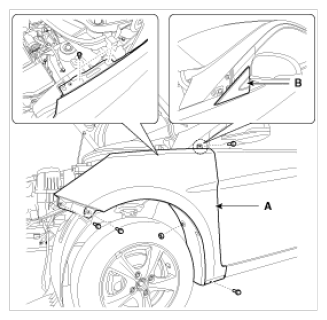

    Fig 3: Identifying Fender And Fender Side Cover
    G08805832Courtesy of HYUNDAI MOTOR AMERICA
  6. Installation is the reverse of removal.
