Repair procedures: Removal

NOTE:

Take care not to scratch the center fascia panel and related parts.
Eject all the discs before removing the audio unit to prevent damaging the CD player's load mechanism.

Disconnect the negative (-) battery terminal.
Using a screwdriver or remover, remove the center fascia garnish (A).

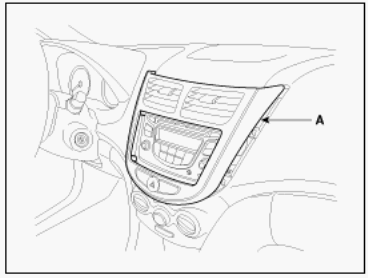

Fig 1: Identifying Center Fascia Garnish
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect 3 connectors (A) (A/C switch, Hazard switch and defroster switch).

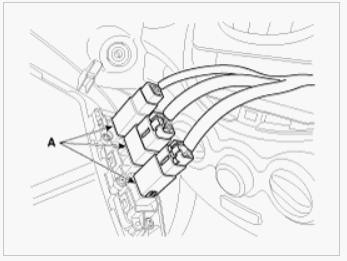

Fig 2: Identifying A/C Switch, Hazard Switch And Defroster Switch Connectors
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, then remove the audio assembly

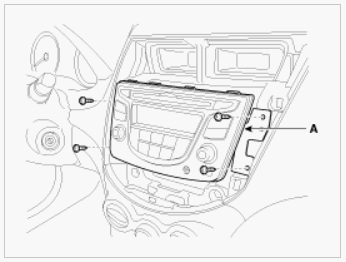

Fig 3: Identifying Audio Assembly With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the audio connectors and cable (A).

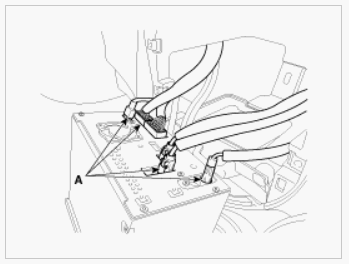

Fig 4: Identifying Audio Connectors And Cable
