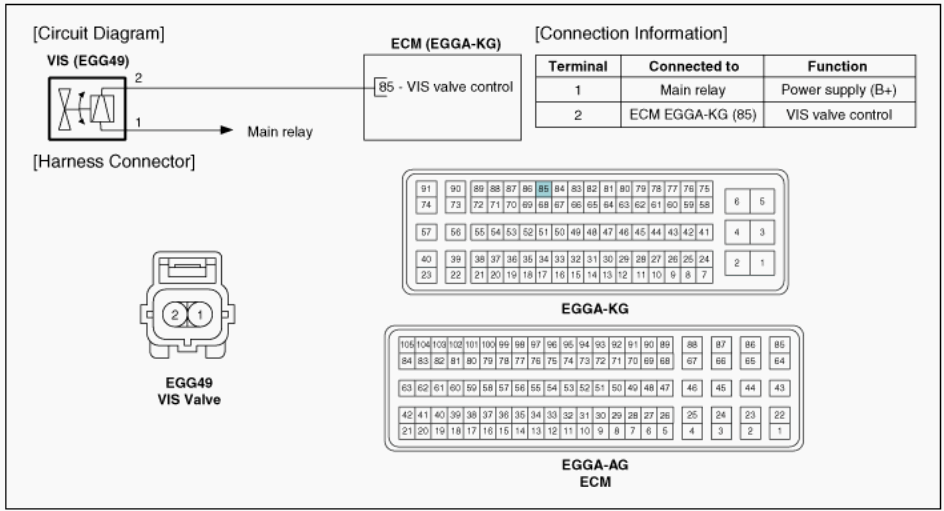

Home >> Hyundai >> 2012 >> Accent GLS, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram >> (A/T)
