Circuit Diagram: (A/T)

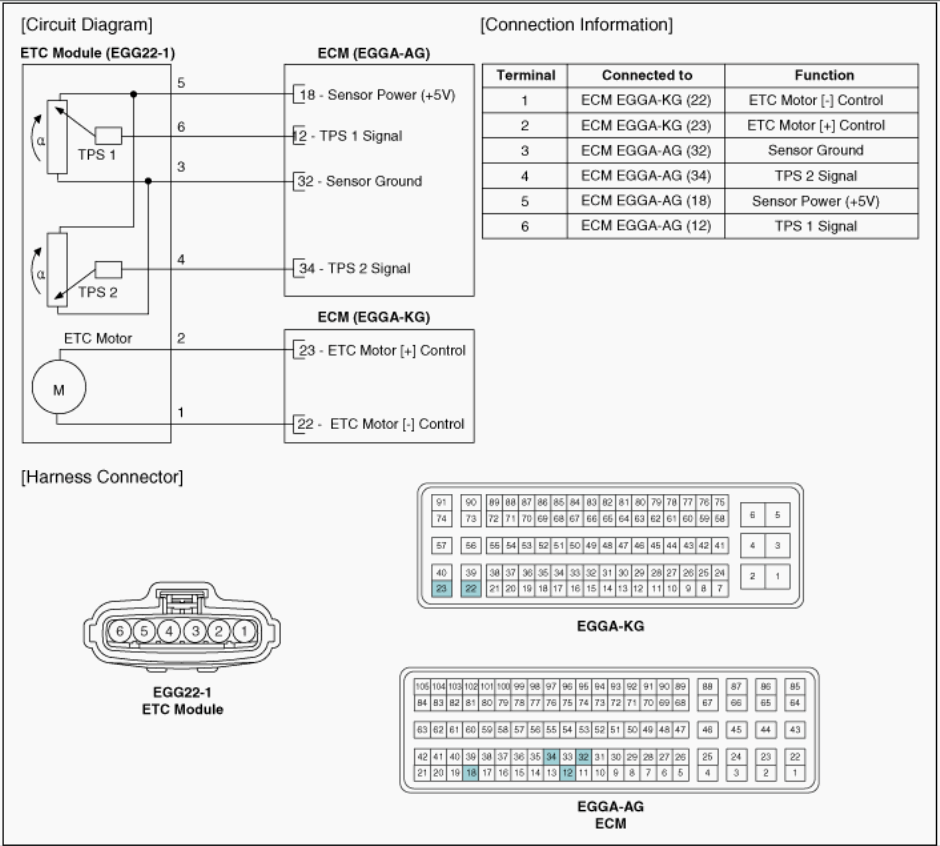

Fig 1: Electronic Throttle Control System - Circuit Diagram (A/T)

G08804412

Courtesy of HYUNDAI MOTOR AMERICA
