Circuit Diagram: (A/T)

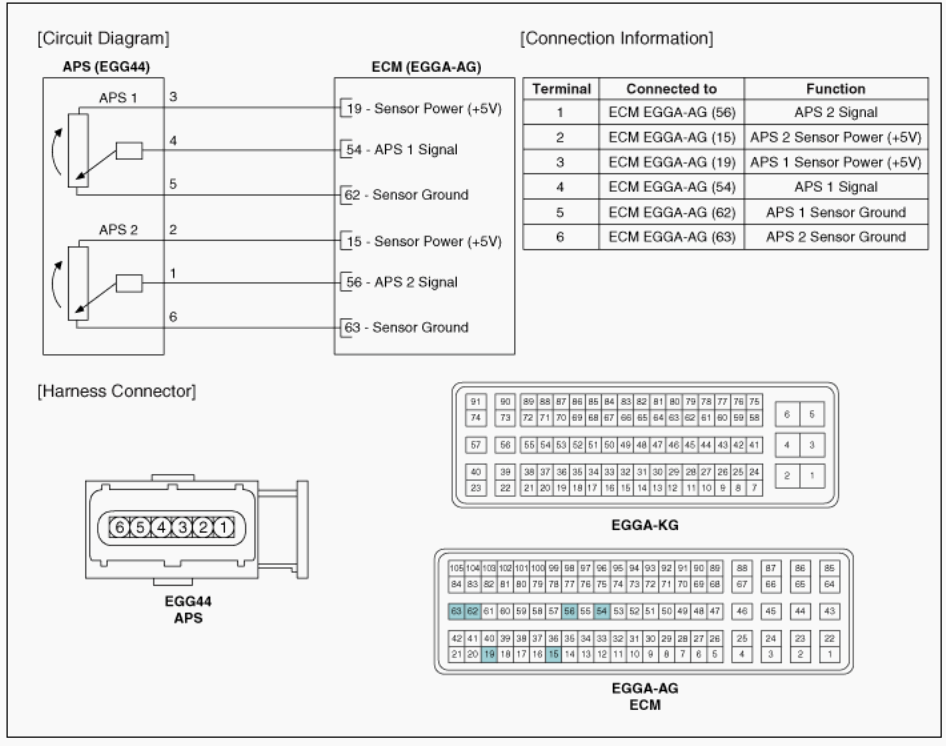

Fig 1: Accelerator Position Sensor - Circuit Diagram (A/T)

G08804466

Courtesy of HYUNDAI MOTOR AMERICA
