Components And Components Location: Components

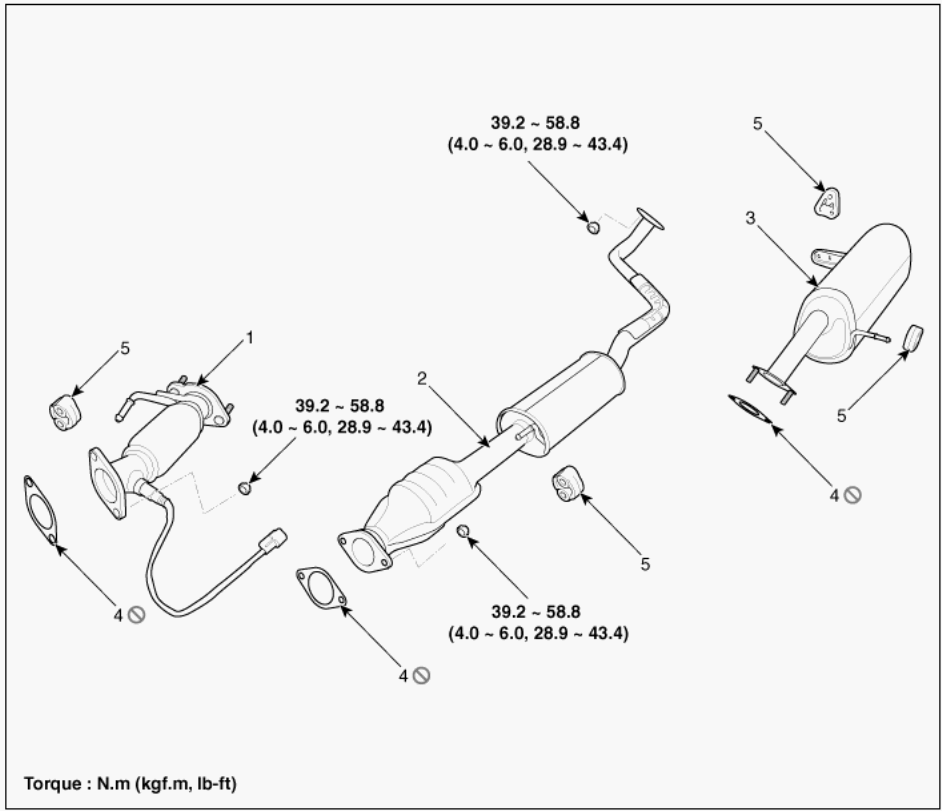

Fig 1: Muffler And Catalytic Converter Replacement Components With Torque Specifications

Courtesy of HYUNDAI MOTOR AMERICA

1. Front muffler	4. Gasket
2. Catalytic converter & center muffler assembly	5. Hanger`
3. Main muffler
