Removal and Installation

Remove the engine cover.
Disconnect the battery negative terminal.
Tightening torque:

4.0 ~ 6.0N.m (0.4 ~ 0.6kgf.m, 3.0 ~ 4.4lb-ft)
Remove the air duct and the air cleaner assembly.
(Refer to ENGINE AND TRANSAXLE ASSEMBLY )

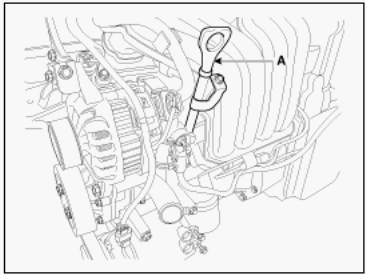

Remove the oil level gauge (A).
Tightening torque:

9.8 ~ 11.8N.m (1.0 ~ 1.2kgf.m, 7.2 ~ 8.7lb-ft)

Fig 1: Identifying Oil Level Gauge
Courtesy of HYUNDAI MOTOR AMERICA

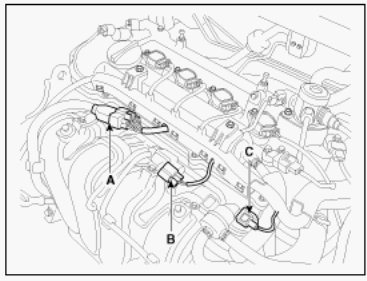

Disconnect the injector extension connector (A), the VIS (Variable intake system) connector (B) and the PCSV (Purge control solenoid valve) connector (C).

Fig 2: Identifying Injector Extension, VIS And PCSV Connectors
Courtesy of HYUNDAI MOTOR AMERICA

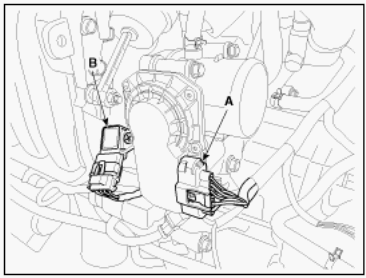

Disconnect the ETC (Electronic throttle control) connector (A) and the MAPS (Manifold absolute pressure sensor) & IATS (Intake air temperature sensor) connector (B).

Fig 3: Identifying ETC, MAPS And IATS Connectors
Courtesy of HYUNDAI MOTOR AMERICA

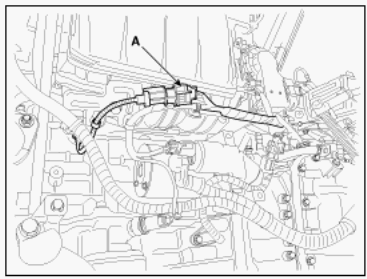

Disconnect the knock sensor connector (A) and remove it from the bracket.

Fig 4: Identifying Knock Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

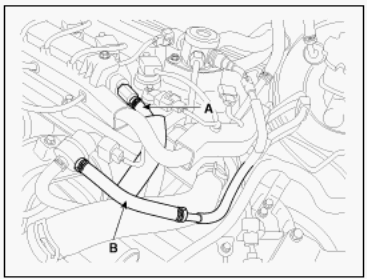

Disconnect the PCV (Positive crankcase ventilation) hose (A) and the PCSV (Purge control solenoid valve) hose (B).

Fig 5: Identifying Positive Crankcase Ventilation And Purge Control Solenoid Valve Hoses
Courtesy of HYUNDAI MOTOR AMERICA

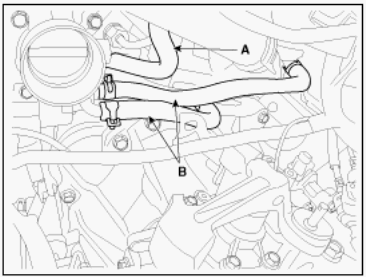

Disconnect the vacuum hose (A) and the throttle body coolant hoses (B).

Fig 6: Identifying Vacuum Hose And Throttle Body Coolant Hoses
Courtesy of HYUNDAI MOTOR AMERICA

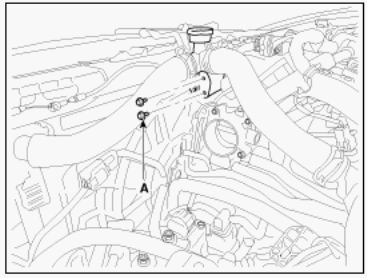

Unfasten the filler neck assembly mounting bolts (A).
Tightening torque:

6.9 ~ 10.8N.m (0.7 ~ 1.1kgf.m, 5.1 ~ 7.9lb-ft)

Fig 7: Identifying Filler Neck Assembly Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
Remove the intake manifold (A) with the gasket (B).
Tightening torque:

18.6 ~ 23.5N.m (1.9 ~ 2.4kgf.m, 13.7 ~ 17.4lb-ft)

Fig 8: Identifying Intake Manifold
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: When installing, replace with new gaskets.
When installing the intake manifold, tighten the bolts and nuts with pre-torque first, and then tighten the bolts and nuts with specified torque in the sequence shown.

Fig 9: Intake Manifold Tightening Sequence
Courtesy of HYUNDAI MOTOR AMERICA
Installation is reverse order of removal.
