Rear Power Window Motor Inspection

Remove the rear door trim panel.
(Refer to the "REAR DOOR ")
Disconnect the 2P connector from the motor.

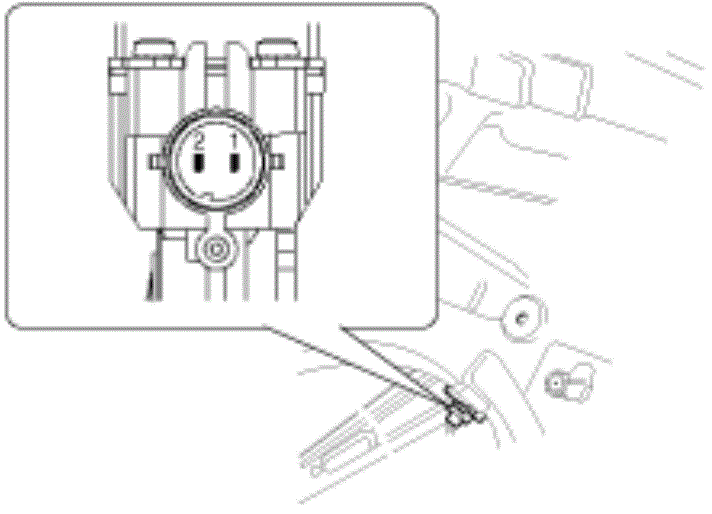

Fig 1: Identifying Motor 2P Connector
Courtesy of HYUNDAI MOTOR AMERICA
Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

Fig 2: Motor Switch Terminal Connection Chart
Courtesy of HYUNDAI MOTOR AMERICA
