Roof Trim Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to "FRONT SEAT ")
2. Rear seat
  (Refer to "REAR SEAT ")
3. Sunvisor
4. Overhead console
5. Assist handle
6. Front pillar trim
  (Refer to "Front Pillar Trim Replacement ")
7. Front door scuff trim & Rear door scuff trim
  (Refer to "Door Scuff Trim Replacement ")
8. Center pillar lower trim & Center pillar upper trim
  (Refer to "Center Pillar Trim Replacement ")
9. Rear pillar trim
  (Refer to "Rear Pillar Trim Replacement ")
10. Rear wheelhousing trim
  (Refer to "Rear Wheelhousing Trim Replacement ")
11. Floor console
  (Refer to "Floor Console Replacement ")
Remove the ECM mirror cover (A).
Disconnect the ECM mirror connector (B).

Fig 1: Identifying ECM Mirror Cover And ECM Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) and then mounting clips in front pillar.
[Driver's]

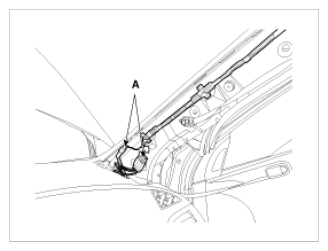

Fig 2: Identifying Front Pillar Connectors (Driver's)
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

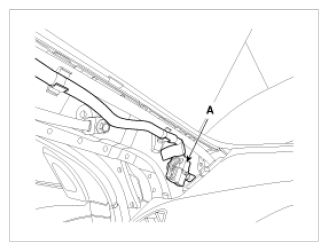

Fig 3: Identifying Front Pillar Connectors (Passenger's)
Courtesy of HYUNDAI MOTOR AMERICA
Remove the clips and roof trim (A).

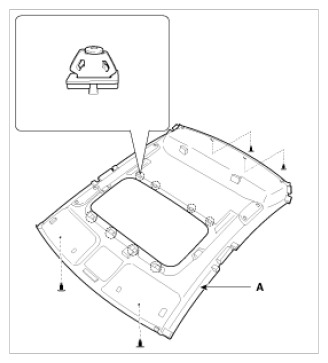

Fig 4: Identifying Roof Trim
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
