Cowl Cross Bar Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to "FRONT SEAT ")
2. Floor Console assembly
  (Refer to "Floor Console Replacement ")
3. Cowl top cover
  (Refer to "COWL TOP COVER ")
4. Front door scuff trim
  (Refer to "Door Scuff Trim Replacement ")
5. Main crash pad
Disconnect the blower unit connectors.
(Refer to BLOWER UNIT .
Disconnect the wiring connector (A).
[Driver's]

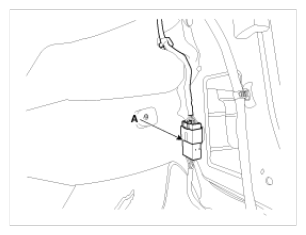

Fig 1: Identifying Wiring Connector (Driver's)
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

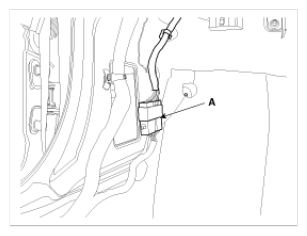

Fig 2: Identifying Wiring Connector (Passenger's)
Courtesy of HYUNDAI MOTOR AMERICA

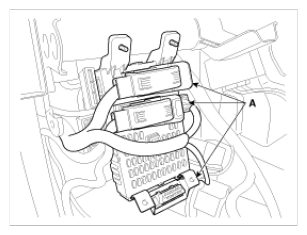

Disconnect the connectors (A).

Fig 3: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the airbag connector (A).

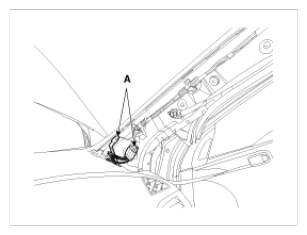

Fig 4: Identifying Airbag Connector (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

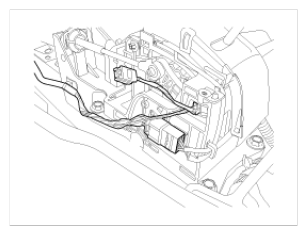

Fig 5: Identifying Airbag Connector (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A) and then mounting clips in front pillar.
[Driver's]

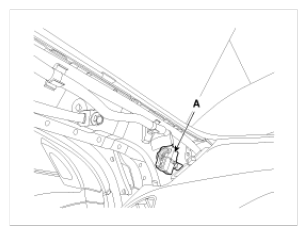

Fig 6: Identifying Front Pillar Connectors (Driver's)
Courtesy of HYUNDAI MOTOR AMERICA

[Passenger's]

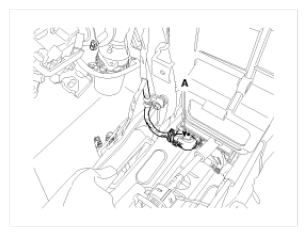

Fig 7: Identifying Front Pillar Connectors (Passenger's)
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and nuts, then remove the cowl cross bar (A).

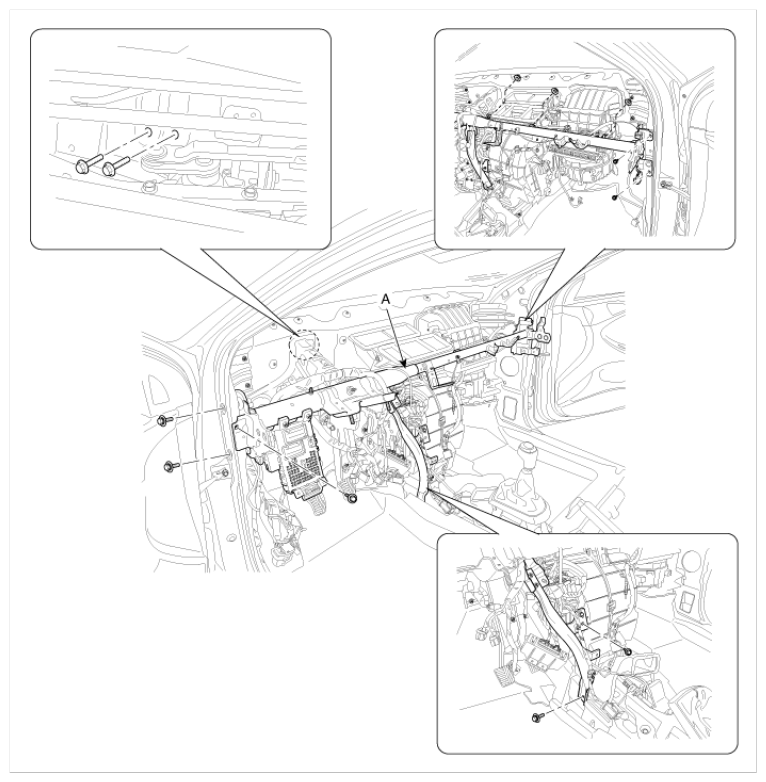

Fig 8: Identifying Cowl Cross Bar
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connectors are plugged in properly.
