Center Facia Panel Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the center facia panel (A).

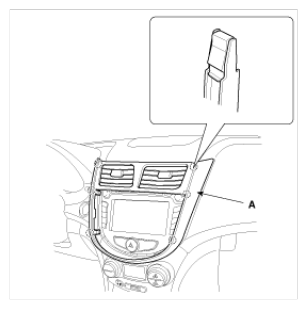

Fig 1: Removing Center Facia Panel
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
